Graphene

Learn more about the thermal performance, available thicknesses, and electronic applications of graphene thermal sheets.

Graphene Thermal Sheets for Efficient Heat Spreading

T-Global graphene thermal sheets are designed for efficient lateral heat spreading in electronic assemblies. With in-plane (XY-axis) thermal conductivity of 1500–1800 W/m·K, these ultra-thin materials help distribute heat across component and enclosure surfaces where space and weight are important design considerations.

Our graphene thermal sheets are available in 50 µm and 90 µm thicknesses. TG-P10050 and TG-P10090 combine high in-plane thermal conductivity with low mass and flexible processing options, including die-cutting into different shapes for integration into compact electronic designs.

Graphene Thermal Sheet Thicknesses and Performance

T-Global offers two graphene thermal sheet options for different mechanical and thermal design requirements:

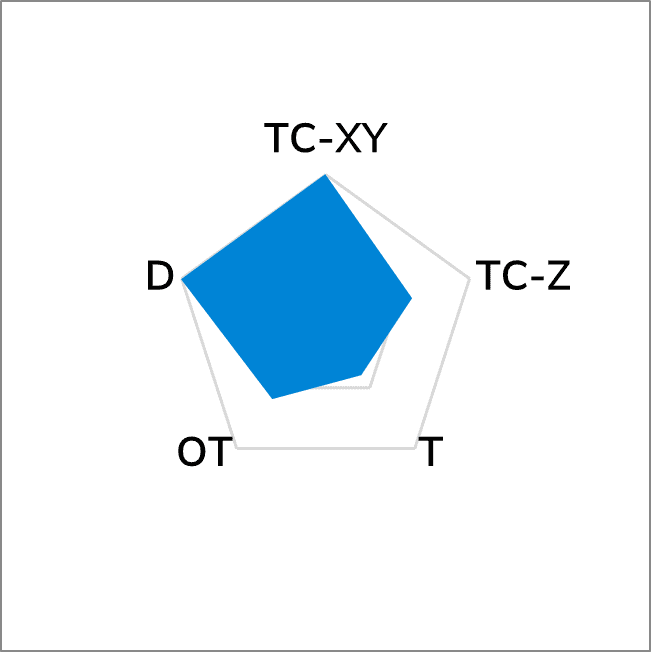

• TG-P10050. A 50 µm ultra-thin graphene thermal sheet with 1500–1800 W/m·K in-plane thermal conductivity and 12 W/m·K through-plane thermal conductivity.
• TG-P10090. A 90 µm graphene thermal sheet with 1500–1800 W/m·K in-plane thermal conductivity and 12 W/m·K through-plane thermal conductivity.

Both materials support an operating temperature range of −20°C to +120°C and are RoHS compliant. Their thin, lightweight construction makes them suitable for applications where traditional thermal management materials may add excessive thickness or mass.

Applications of Graphene Thermal Sheets

Graphene thermal sheets can be used in electronic systems that require efficient heat spreading across limited surface areas.

AI, Servers, and Datacom Equipment

AI systems, servers, and datacom equipment can generate concentrated heat within compact assemblies. Graphene thermal sheets help spread heat laterally across available surfaces, supporting more uniform thermal distribution within space-constrained electronic designs.

5G and Telecom Electronics

5G and telecom equipment often combines high-density electronic components with limited internal space. Ultra-thin graphene thermal sheets can be integrated into these assemblies to provide heat-spreading performance without significantly increasing overall system thickness.

Automotive and Electric Vehicle Electronics

Automotive and electric vehicle electronic systems require thermal materials that can be integrated into compact assemblies. T-Global graphene thermal sheets provide lightweight heat-spreading options for electronic components, power electronics, displays, and related systems.

Consumer and High-Performance Electronics

Consumer devices, displays, AR/VR systems, industrial electronics, lighting equipment, and other high-performance electronic products can benefit from thin thermal spreading materials where component density and available space limit conventional cooling approaches.

Flexible Integration for Electronic Thermal Management

TG-P10050 and TG-P10090 can be die-cut into different shapes to match component layouts and assembly requirements. Their ultra-thin construction supports integration into applications where additional mechanical thickness must be minimized.

For applications requiring different thermal characteristics, engineers can also explore T-Global graphite thermal sheets and other thermal management materials.

Graphene Thermal Sheet FAQs

What are graphene thermal sheets used for?

Graphene thermal sheets are used to spread heat laterally across electronic components and surfaces. Typical applications include AI systems, servers, telecom equipment, automotive electronics, consumer devices, displays, power electronics, and other compact electronic assemblies.

What thermal conductivity do T-Global graphene thermal sheets provide?

TG-P10050 and TG-P10090 provide 1500–1800 W/m·K in-plane (XY-axis) thermal conductivity and 12 W/m·K through-plane (Z-axis) thermal conductivity.

What thicknesses are available?

T-Global graphene thermal sheets are available in 50 µm and 90 µm options. TG-P10050 has a nominal thickness of 50 µm, while TG-P10090 has a nominal thickness of 90 µm.

What is the operating temperature range?

TG-P10050 and TG-P10090 are specified for an operating temperature range of −20°C to +120°C.

Can graphene thermal sheets be die-cut?

Yes. T-Global graphene thermal sheets can be die-cut into different shapes to support integration into specific component layouts and electronic assemblies.

Are T-Global graphene thermal sheets RoHS compliant?

Yes. TG-P10050 and TG-P10090 are identified as RoHS compliant in their product specifications.

Graphene Thermal Solutions from T-Global USA

Selecting a graphene thermal sheet requires consideration of thermal conductivity, thickness, available installation space, and assembly requirements. TG-P10050 and TG-P10090 provide ultra-thin heat-spreading options for a range of electronic thermal management applications.

Contact T-Global USA to discuss your thermal requirements, request a sample, or identify the appropriate graphene thermal sheet for your application.
