Active Thermal Management

Active Thermal Management Solutions from T-Global

T-Global’s active thermal management solutions provide precise and responsive temperature control for demanding industrial applications. Using thermoelectric cooling (TEC) technology, these systems support both active cooling and heating to maintain stable operating temperatures as thermal loads change. Our solutions integrate TEC modules, temperature sensing, thermal interface materials, heat dissipation components, and application-specific control systems into a complete thermal management platform. Closed-loop temperature control enables fast thermal response, repeatable performance, and accurate setpoint management across a wide range of operating conditions. T-Global supports customized thermal solutions for electronics and semiconductor testing, laser and optical systems, battery and power electronics, satellite and aerospace applications, and other systems that require precise temperature regulation. Learn more about our thermoelectric cooling and thermal module capabilities.

What is a TEC Module?

A TEC (Thermoelectric Cooling) module is an active thermal management solution that provides precise heating and cooling using solid-state thermoelectric technology.
By applying electrical power, the module actively transfers heat from one side to the other, enabling fast temperature pull-down, accurate control, and stable operation. Reversing the current direction allows the same module to function in heating mode as well.

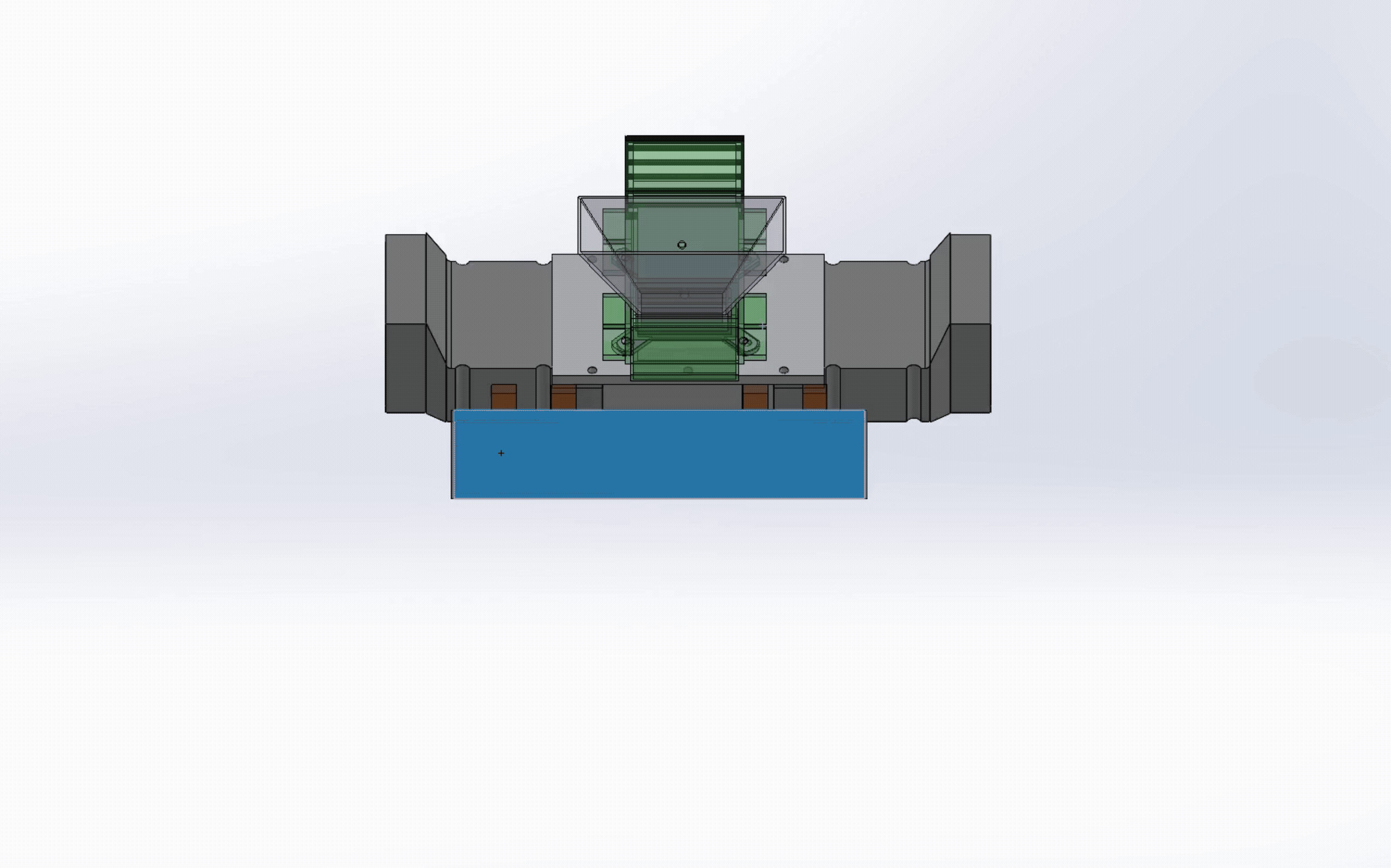

Structural layout of a TEC module for active thermal management

What’s inside a TEC Module?

A complete TEC module integrates multiple components into a ready-to-deploy thermal solutions.

Thermoelectric (Peltier) device
Optimized heat sinks and fans
Thermal Interface Materials

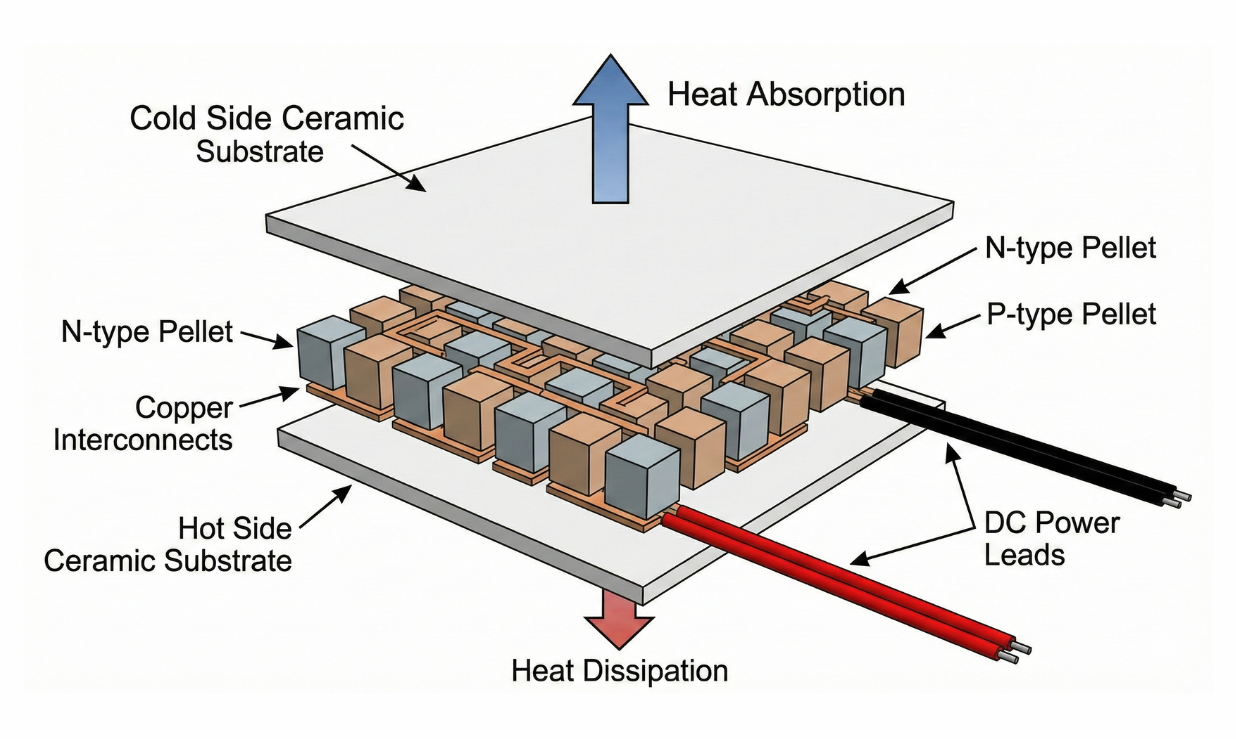

Structural layout of a TEC module for active thermal management

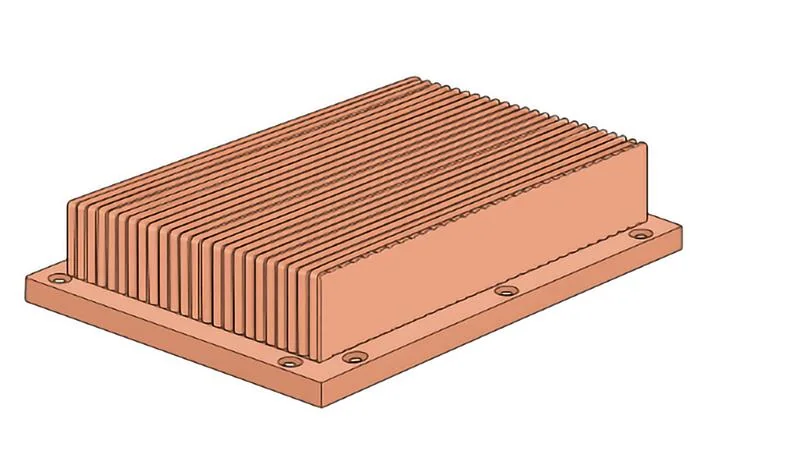

Heat sink fin structure for thermal dissipation

This integrated design delivers a ready-to-deploy thermal solution, not just a standalone component.

The Core of TEC Module: TEC Controller

A Peltier device, heat sink, and thermal interface materials only address the physical side of thermal management. Something still has to govern current delivery: how much, when to increase it, when to hold steady. That’s the TEC controller’s function: closed-loop feedback, sampled via thermocouple or NTC thermistor, that runs PID controller algorithm against the setpoint and adjusts current to the thermoelectric device accordingly. It also manages bidirectional current control, reversing direction as the setpoint crosses from heating to cooling, so the system tracks the target temperature as thermal load changes rather than under a fixed set of conditions.

T-Global designs and builds the TEC controller as part of every module, not as a fixed off-the-shelf part. Each one is a modular, application-specific design, built to spec and compliant with the relevant regulations for its end use.

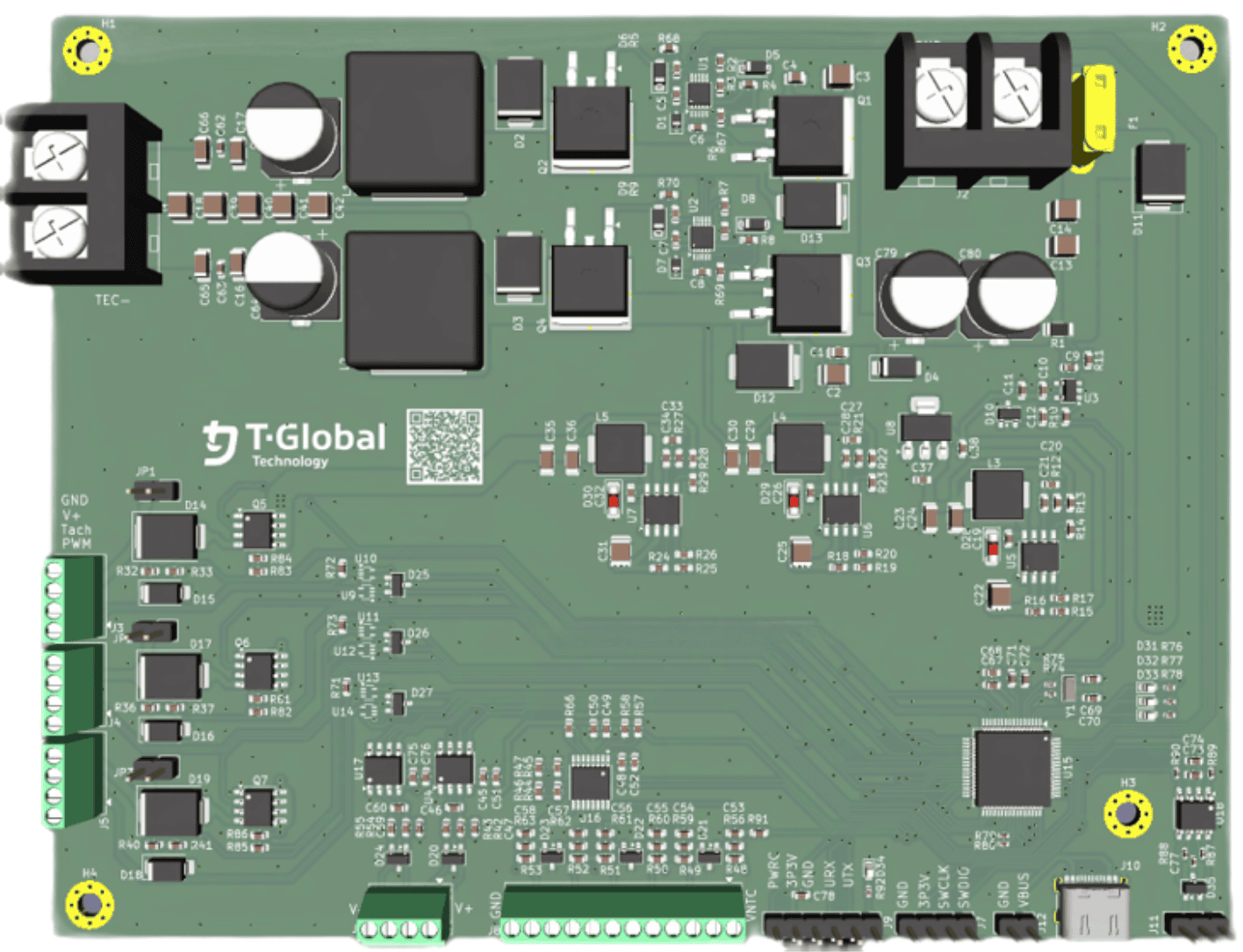

T-Global TEC controller board for active thermal management and precise temperature control

Two things matter most once that control loop is running:

  • Efficiency: a low-ripple current driver reduces switching losses, and a control method tuned to maximize coefficient of performance (COP) gets more cooling or heating out of every watt, a real constraint in space-limited or battery-powered systems
  • Stability: adaptive control continuously adjusts as thermal load changes, paired with high-precision temperature sensing, so the module holds its setpoint even under shifting conditions rather than just under steady-state ones

Our TEC Controller Evaluation Board shows this in practice

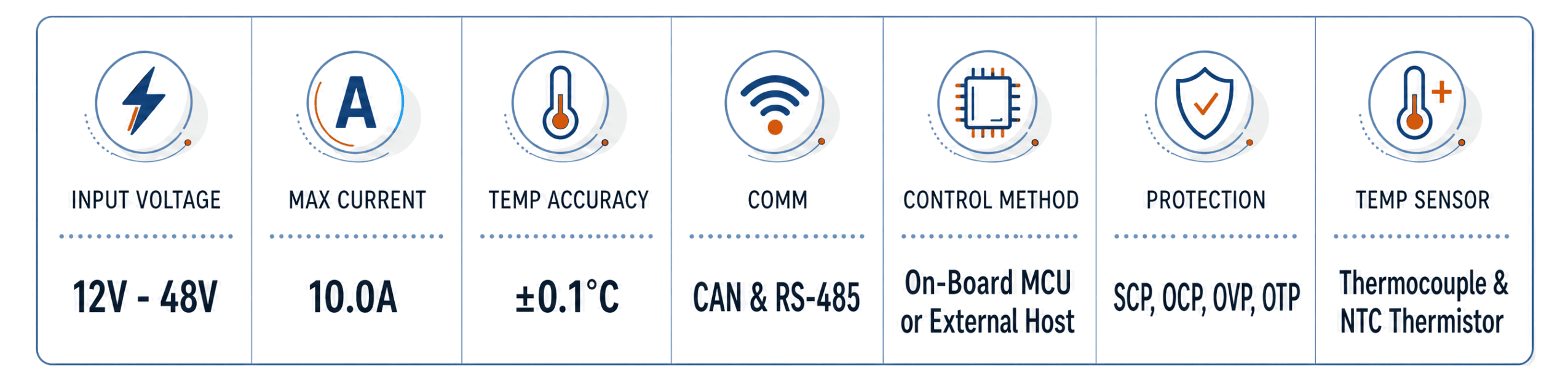

Representative specifications of T-Global TEC Controller

It’s a reference design, not a fixed configuration. Every controller is built around what the application actually needs.

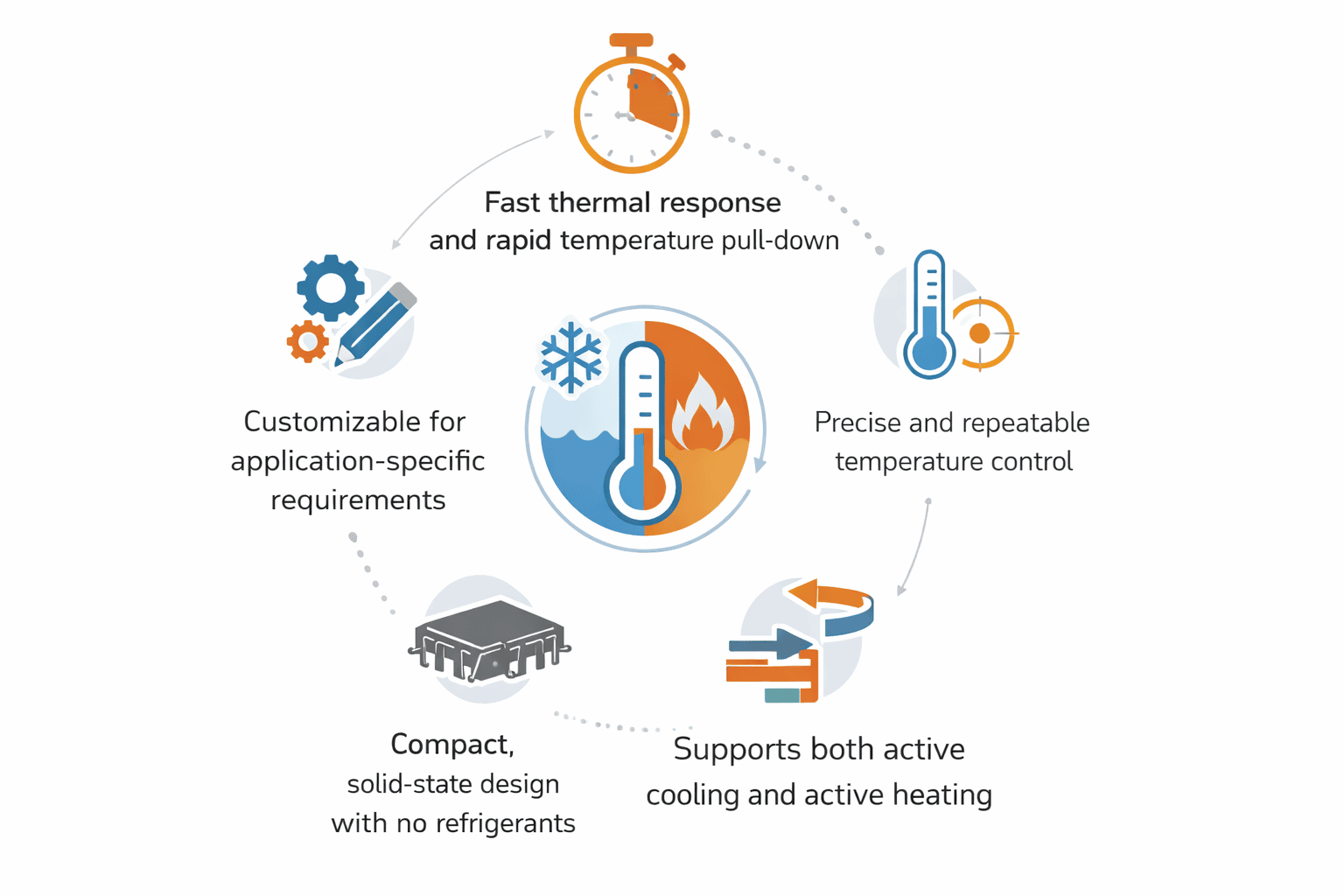

Key Benefits

✔ Fast thermal response and rapid temperature pull-down

✔ Precise and repeatable temperature control

✔ Supports both active cooling and active heating

✔ Compact, solid-state design with no refrigerants

✔ Customizable for application-specific requirements

Active Thermal Management Solutions

To ensure stable performance and long-term reliability in electronic systems, precise temperature control is essential. T-Global provides active thermal management solutions engineered for accurate, closed-loop, bidirectional heating and cooling across a wide range of applications, delivering consistent and responsive thermal regulation:

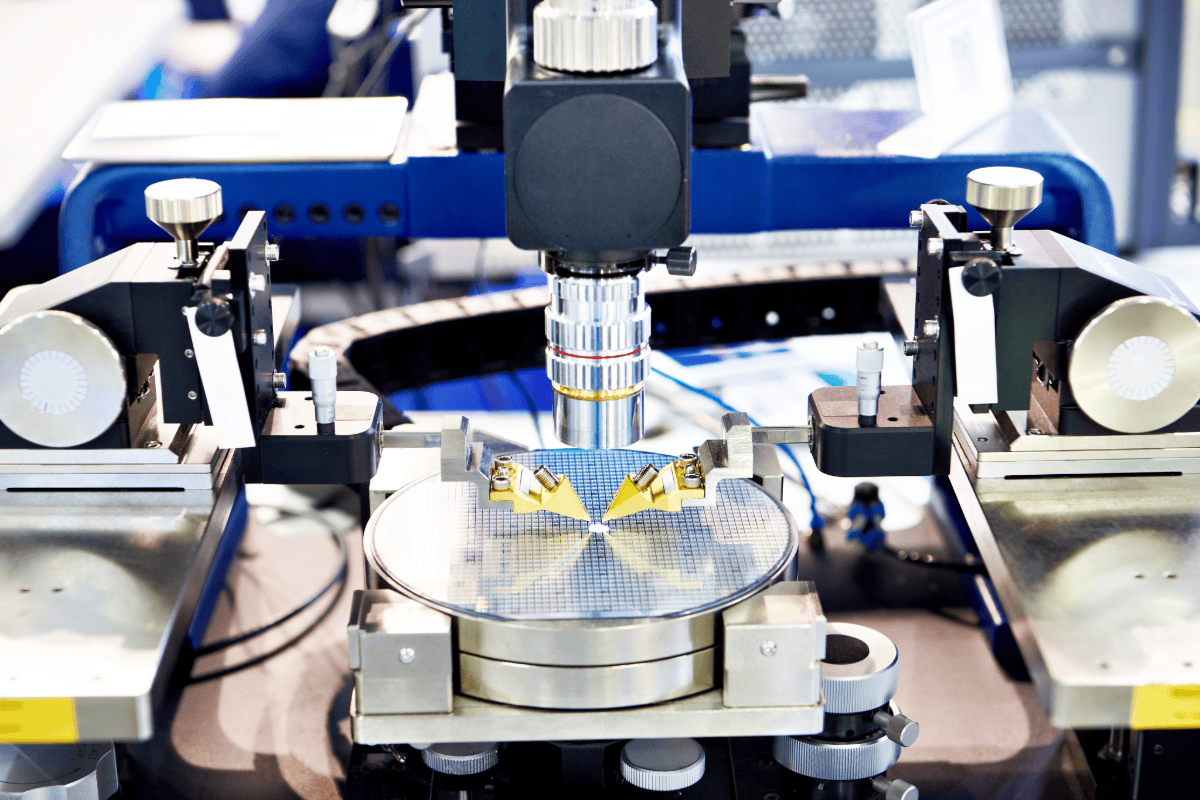

Probe station

Electronics & Semiconductor Testing

Thermal control for electronics validation and reliability testing.

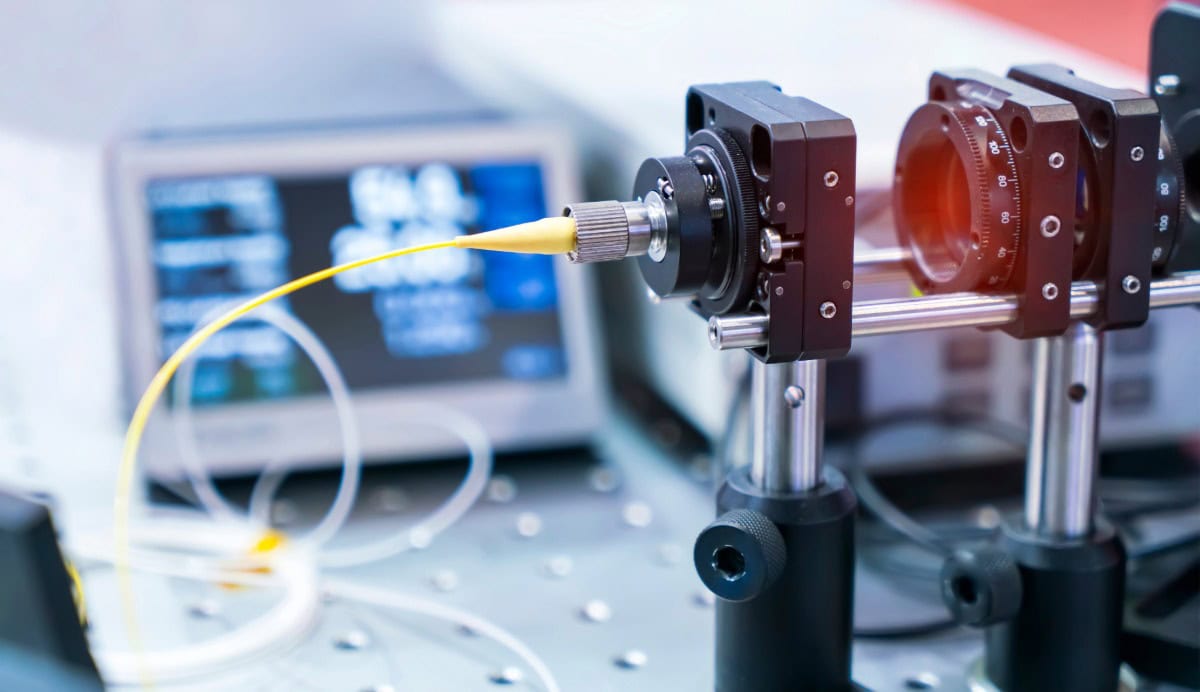

Laser & Optical Systems

Laser & Optical Systems

Stable temperature management for laser and optical components.

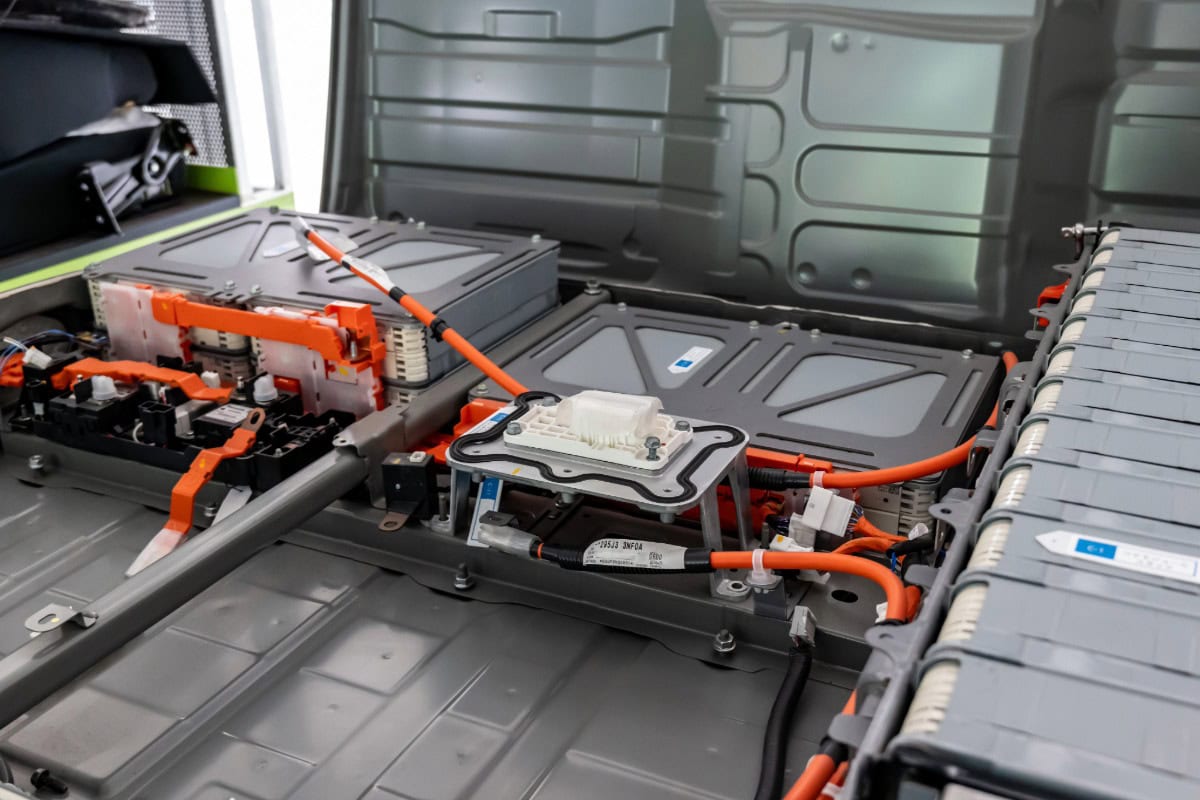

Battery & Power Electronics

Battery & Power Electronics

Active thermal control for batteries and power devices.
Satellites and aerospace thermal management

Satellites & Aerospace

Precision temperature control for satellite payloads and aerospace electronics.

Customized Module and Thermal Solution!
